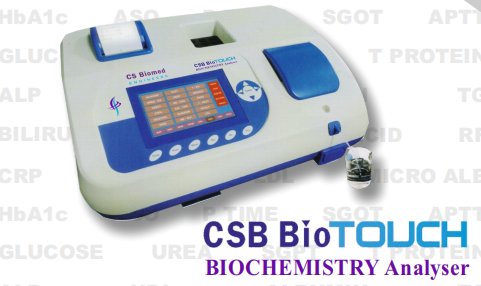

CSB Biotouch
Semi Automated Biochemistry Analyser
₹150000.00₹130000.00
FEATURES
Direct access to more than 200 tests through test keys
Maintenance free peristaltic pump
Unique circuitry for long lamp life
Triple cuvette system
Real time graph with online reading
Multi standard calibration & memory
Automatic calibration against standard
Displays actual temparature on screen
Levey jennings and standard deviation graphs
Sample carry over prevention facility
Robust system with built in stabilizer
Patient report with PID & name
User friendly software
USB interface
TECHNICAL SPECIFICATION
Filters
Type of filter : High quality narrow band interference
Wave length : 340, 405, 510, 546, 578, 630 nm & two optional
Memory
Open tests : 250 tests
Results : 2500 patient results
QC : 30 QC results / test
Incubator : 15 Positions at 37 C
Analysis Modes
Biochemistry & Tubidimetry : Absorbance, End Point, Fixed Time,
Kinetic, Differential & Ratio
Coagulation : PT, INR & APTT
Flow Cell
Sipping volume : upto 1000 l
Triple cuvette system : 18 l flow cell, 10 mm square cuvette, Round tube for coagulation
Display 5" Color Graphics LCD
Human Machine Interface : TOUCH PANEL / KEYPAD
Printer : On board thermal 28 columns, maintenance free
Power
Wattage : 100 VA
Voltage : 115 - 230 volts + 10%, 50 - 60 Hz
Optical System
Linear measurement range : 0.000 to 3.000 absorbance units (A)
Optical measurement : Photodiode
Light Source : Tungsten halogen
Photometric accuracy : + 2% or 0.007 whichever is higher,
from 0 to 1.5 A, + 3% from 1.5 A to 3.0 A
Storage Conditions
Temparature : From - 10 C to + 60 C
Relative Humidity : Up to 85%
Enclosure : ABS fire retardant
Dimensions in mm (xbxh) : 380 X 305 X 175 (Approx.)
Weight : 5 kgs. (Approx.)
