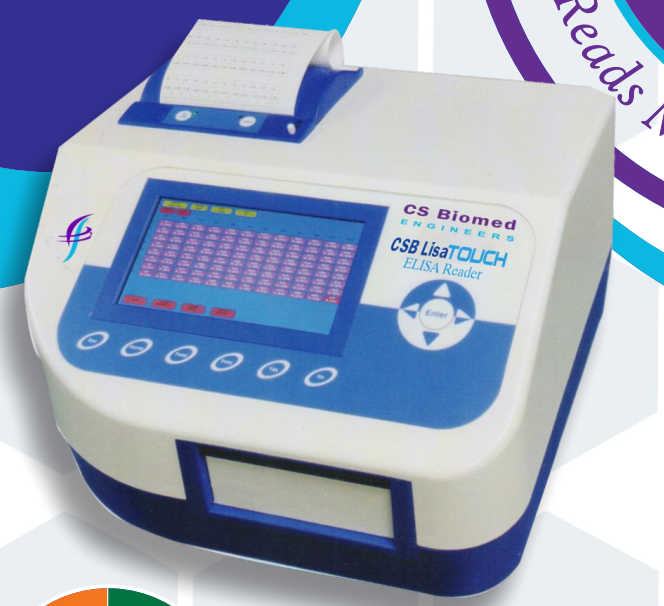

CSB LisaTouch ELISA Plate Reader
Complete Solution for ELISA & EIA Tests
₹175000.00₹140000.00
The CSB Lisa TOUCH ELISA Reader offers precision in reading microplates for ELISA and EIA tests. It provides user-friendly operation, customizable test programs, and advanced optics for accurate results. With versatile connectivity options and an intuitive graphical interface, this device is perfect for clinical labs and research environments seeking reliable and cost-effective performance.
Optical System
Linear measurement range : 0.000 to 3.500 absorbance units (A)
TECHNICAL SPECIFICATIONS
Photometric Accuracy : ± 2% or 0.007 whichever is higher from 0 to 1.5 A,
± 3% from 1.5 A to 3.5 A
Drift : < 0.005 A/hr
Resolution : 0.001
Light Source : Halogen
Filters
Type of filter : High quality narrow band interference
Wavelength : 405, 450, 492, 630 nm & two optional
Half bandwidth : < 10 nm
Selection : Automatic by steper motor
Memory
Programs : 250 tests
Results : 9600 patient results retrieval Assay wise, patient wise
Printer : On board thermal 52 columns, maintenance free
Display 7" Graphics Color Display
Human machine interface : TOUCH PANEL & KEYPAD
Power Voltage : 115 - 230 volts ± 10%, 50 - 60 Hz
Computer Interface: RS 232 Serial Port +USB
Analysis Modes : Absorbance, Cut-off, Multi-standard, % Absorbance, Single standard, Uptake, Ratio
Curve Plotting : Graphical representation on printer & display
Plate Carrier Movement : Precisely through stepper motor
