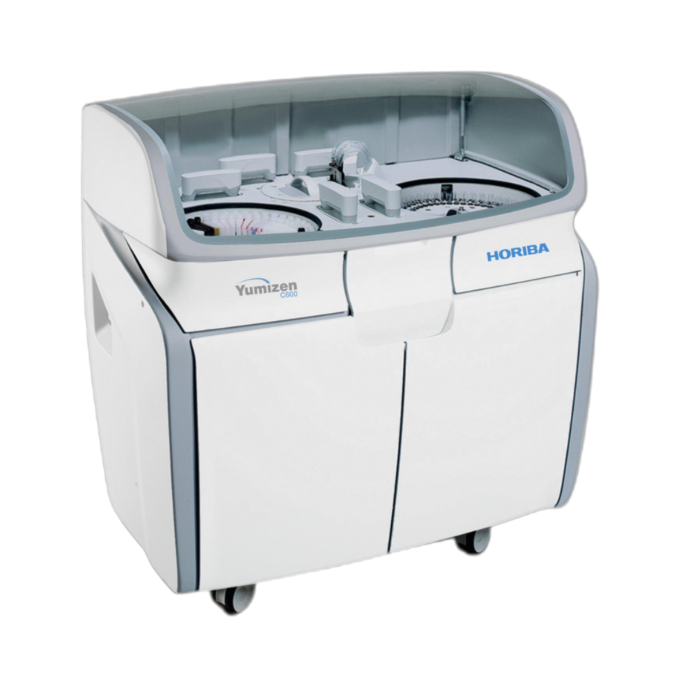

Yumizen C600
Automated Clinical Chemistry Analyzer_400 Throughput
₹4000000.00₹3900000.00
400 photometric tests/hour & 600 with ISE
Continuous Sample Loading with barcode scanning
Maintenance-Free Ceramic pistons ensuring consistent and accurate pipetting
MALS (Multi Array LED System) technology with 8 LED wavelength power
Separate heavy duty dispensing probes with liquid level & Clot detector
On board laundry system designed with hot water for efficient cleaning
Throughput | 400 tests/hr (Photometric)320 tests/hr (ISE)600 tests/hr (Photometric + ISE) |
Principles of analysis | Colorimetry, Turbidimetry, Potentiometry |
ISE Module (optional) |
|
Sample type | Serum, Plasma or Urine |
Electrode type | Na⁺, K⁺, Cl⁻, Li⁺ (optional) |
Sample volume | Serum: 100 µL, Urine: 200 µL |
Sample Handling |
|
Capacity of sample tray | 126 (up to 9 segments – 14 positions/segment) |
Sample Barcode Reader | Yes |
Positions with barcode | 81 |
Primary Tube Size | Diameter from 12 mm to 16 mm (height up to 100 mm) |
Sample containing type | Vacutainer, 2ml cup, 500µL Pediatric Cup, Test tubes, etc. |
Type of syringe | Ceramic piston pump with low maintenance |
Sample volume | From 2 µL to 40 µL |
Predilution ratio | From 1:2 to 1:200 |
Level detector | Yes |
Clot detector | Yes |
Vertical collision detector | Yes |
Optical System |
|
Light Source | LEDs |
Photometric range | -0.2 A to 3.5 A |
Wavelengths | 340, 405, 505, 535, 560, 600, 635, 670 nm |
Filters bandwidth | ± 2 nm |
Internal resolution | 0.0001 |
Photo Detector | Main Photodiode + Reference Photodiode |
Measurement precision | CV <1% to 0.1 A CV <0.1% to 2 A |
Environmental Requirements |
|
Ambient temperature | From 10 °C to 35 °C From 10 °C to 30 °C (with ISE module) |
Relative humidity | <85% without condensation |
Altitude | <2500 m |
Physical Information |
|
Dimensions | 1200 mm(W) x 720 mm(D) x 1258 mm(H) |
Weight: | 210 Kg |
Electrical Requirements |
|
Mains voltage | 115 V to 230 V |
Mains frequency | 50 Hz or 60 Hz |
Electric power | 500 VA |
Fluidic Requirements |
|
Water inlet | External tank or Direct DI water supply |
Water Type | Purified Type II |
Water consumption | <14 liters/hr |
Container for biohazard waste | 5L |
Container for washing solution | 5L |
Minimum Computer Requirements |
|
Operating system | Windows 10 or above, 64-bit (x64) |
CPU | Equivalent to Intel Core i3 |
RAM | 8 GB or higher |
Hard Disk | 500 GB or higher |
Monitor minimum resolution | Minimum resolution 1024 x 768 |
Connector of serial channel | USB |
